Underfloor heating and a heat pump: the perfect combination for your home

Why underfloor heating and a heat pump work so well together

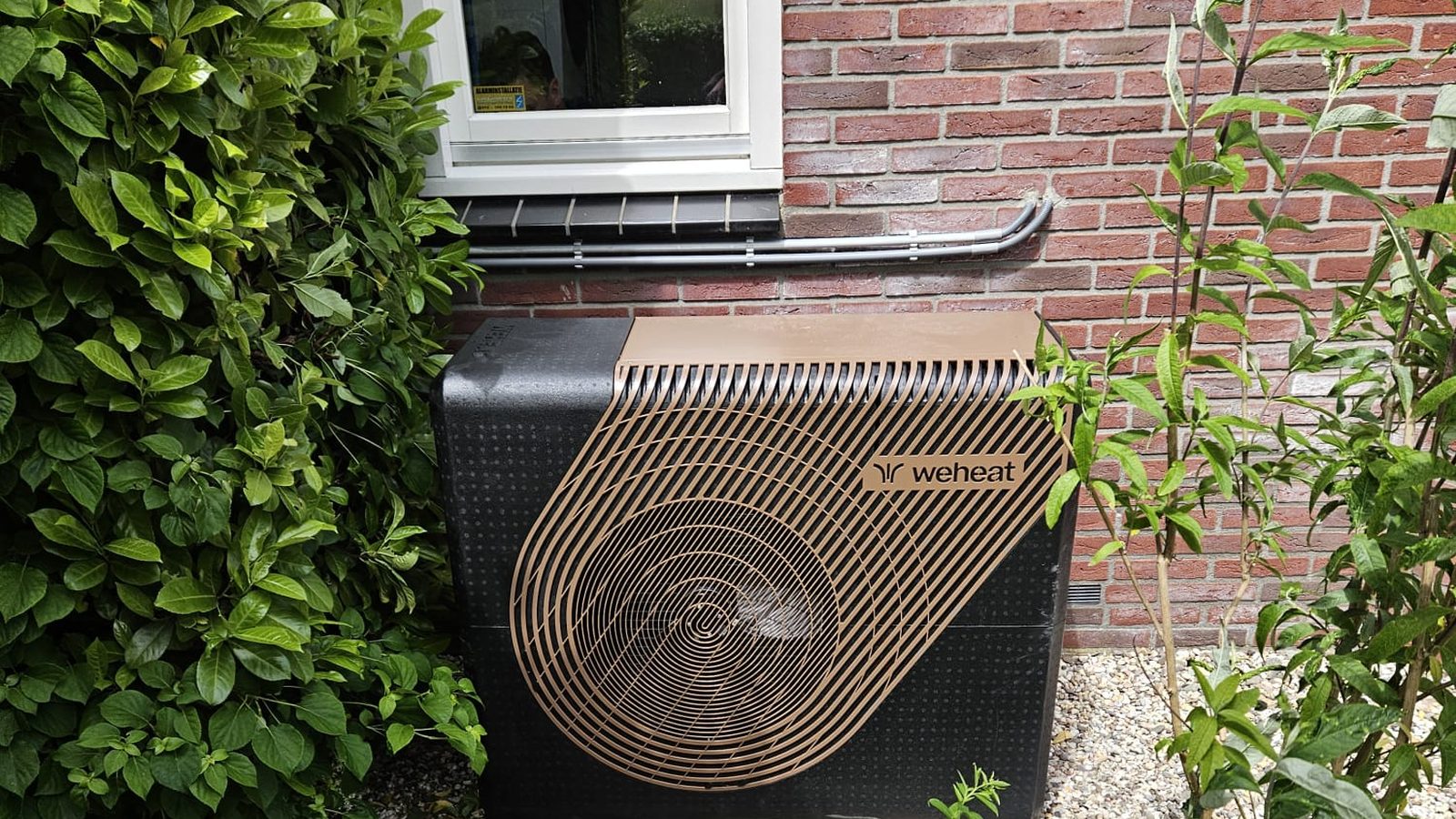

A heat pump takes heat from the outside air, the ground or groundwater and brings it into the home. It works best when the heating system can deliver comfort at a low water temperature. Underfloor heating is designed for exactly that.

Traditional radiators often need water at 70 to 80 degrees Celsius. A heat pump is most efficient at much lower temperatures, typically between 30 and 55 degrees. Water-based underfloor heating usually runs around 35 to 45 degrees, which is why the two systems match so naturally.

The result is even warmth across the room, no hot radiator zones and a heating system that can make much better use of the heat pump's efficiency.

Low temperature: why this is the key

The principle is called low-temperature heating. Instead of heating a small surface very hot, you heat a large surface gently. The floor becomes the heat emitter, spreading warmth evenly through the room.

This matters because a heat pump becomes more efficient when the gap is smaller between the source temperature and the water temperature it must produce. Heating water to 40 degrees costs far less energy than heating it to 70 degrees.

If your home currently relies on older radiators, they may need to be enlarged or replaced before a heat pump can perform well. With underfloor heating, that low-temperature requirement is usually built in from the start.

Efficiency and savings: what to expect

A heat pump can deliver several units of heat for every unit of electricity it uses. Direct electric heating, by comparison, converts one unit of electricity into roughly one unit of heat. That difference is the reason heat pumps are so attractive for whole-home heating.

• Direct electric heating: simple, but usually expensive as main heating.
• Heat pump with water-based underfloor heating: far more efficient for larger rooms and whole-home systems.
• Low-temperature operation: helps the heat pump maintain a better seasonal performance.

Underfloor heating helps you get the most out of that efficiency. If the heating system still needs very hot water, the heat pump has to work harder and operating costs rise.

Insulation comes first

Good insulation is essential. Without it, neither a heat pump nor underfloor heating can work efficiently. Heat should go into the room, not disappear into the ground, walls or roof.

Before installing this combination, check at least:

• Floor insulation, especially above crawl spaces.
• Wall and roof insulation, so the home keeps heat longer.
• Draught sealing, because air leaks quickly reduce comfort.
• Ventilation, to keep indoor air healthy after insulation improvements.

If you are already opening the floor for underfloor heating, it is often smart to improve floor insulation at the same time.

Why not electric underfloor heating?

Electric underfloor heating can be useful in small spaces, such as a bathroom that only needs short warm-up periods. But as main heating for larger rooms, it is usually not the best partner for a heat pump strategy.

The reason is simple: electric mats turn electricity directly into heat. A water-based system connected to a heat pump can use electricity to move existing heat, which is much more efficient for everyday heating.

Choosing the right floor finish

The floor finish must allow heat to pass through. If the top layer insulates too much, comfort drops and energy use rises.

These finishes usually work well with underfloor heating:

• Tiles and natural stone: excellent heat transfer.
• Engineered parquet: suitable when approved by the manufacturer.
• PVC and vinyl: many modern click systems are compatible.
• Linoleum: often suitable with the right product specification.

Thick carpet and solid wood are usually less suitable because they can block heat transfer or move too much with temperature changes.

When is a heat pump plus underfloor heating a good choice?

This combination is worth serious consideration if:

• You are replacing the floor anyway.
• Your home is reasonably well insulated, or insulation is part of the renovation.
• You plan to stay in the home long enough to benefit from lower operating costs.
• You already have a heat pump or are preparing for one.
• You want fewer visible radiators and more even comfort.

It is less logical in a poorly insulated home without insulation plans, or when the floor will not be touched during the renovation.

Practical next steps

1. Check insulation first. Floor, wall and roof insulation determine how well the system will perform.
2. Assess the existing floor. Some floors can be routed; others need a low-profile overlay system or a new screed.
3. Choose the floor finish early. Tiles, PVC, parquet or another finish affect the build-up and heat transfer.
4. Match the system to the heat pump. The heating zones and water temperature should be planned together.
5. Ask for a clear quote. Compare not just price, but also insulation, manifold, controls and finishing work.

Conclusion

Underfloor heating and a heat pump are a strong combination because they are both built around low-temperature heating. With good insulation and the right floor finish, the result is comfortable, even warmth and a heating setup that is ready for the future.
